Common Floor Plan Mistakes and How to Catch Them Early

1. Routes that pass through occupied rooms

An early check is a route from the entrance to the kitchen crossing the living room, or from a bedroom to a bathroom crossing a family space.

Catch it: trace five daily journeys on the plan and note every occupied room each one crosses.

Fix it: consider moving a door or reorganising the route. After construction, check the cost and structural or services consequences before changing it. See circulation in architecture.

2. Rooms with no usable wall left

A room can meet its area target and still have nowhere to put a sofa, a wardrobe or a desk, because doors, windows and openings have consumed every unbroken run of wall.

Catch it: measure each unbroken run. Assumed example: a 4.0 m wall has a 0.9 m opening whose near jamb is 1.5 m from the left end. The other jamb is at 2.4 m; the remaining runs are 1.5 m and 4.0 − 1.5 − 0.9 = 1.6 m. These are illustrative dimensions, not a plan to measure or a prescribed doorway; trim and clearances may reduce usable furniture space.

Fix it: group openings, move a door to a corner, or accept a smaller room with more wall. See space planning basics.

3. Bedrooms against plumbing, plant or kitchens

Waste pipes, cisterns, boilers, heat pumps, refrigeration and washing machines all generate noise, much of it structure-borne and therefore not solved by insulation in the partition.

Catch it: colour the plan by group — quiet, active, service — and look for any shared wall between quiet and the other two.

Fix it: a buffer space. Wardrobes, a store, a hallway. See room adjacency.

4. Ignoring the vertical

Adjacency is three-dimensional. Bathrooms or plant above a quiet room need a check of noise sources, pipe routes, structure and acoustic separation. They are not automatically layout errors.

Catch it: overlay the floor plans and check what sits above and below every quiet room.

Fix it: compare stacking service spaces with keeping the proposed arrangement and improving noise control. Verify plumbing routes and cost rather than assuming a saving.

5. Door swings nobody checked

Doors that collide with each other, swing into a circulation route, cover a light switch, or open against the wall where furniture has to go.

Catch it: look at every door arc on the plan and ask what it hits when open, and what it hides.

Fix it: compare rehanging, a compatible sliding arrangement or relocation; check access and clear passage with the proposed door.

6. Furniture that was never drawn

Plans furnished with generic, undersized furniture — or not furnished at all — hide clearance problems entirely.

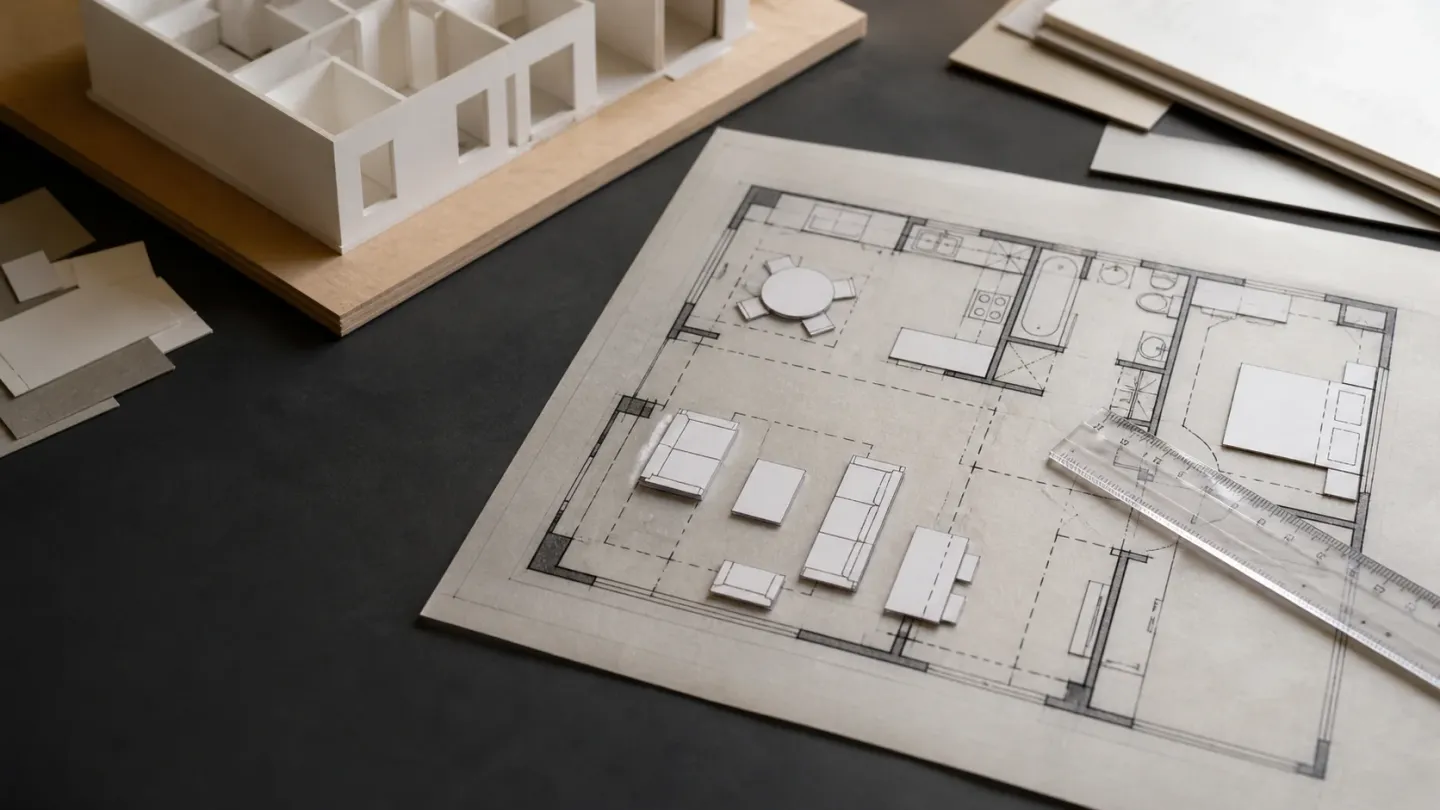

Catch it: draw your actual furniture at true scale, plus the space to use it: a chair pulled out, a wardrobe door open, a dishwasher door down, a bed made from both sides.

Fix it: resize the room, or buy different furniture — but decide which, on the drawing.

7. Windows resolved on the elevation

Window positions that compose beautifully on the elevation and land badly inside — too high to see out of when seated, in the middle of the only wall a bed could go against, or lighting the part of the room nobody uses.

Catch it: look at every window from inside the room. What does it see, what does it light, what wall does it consume, and can you open it from where you would stand?

Fix it: on the drawing, by accepting a slightly less tidy elevation.

8. Single-aspect deep rooms

A deep room lit from one end goes dark at the back regardless of how much glass is in the wall. Daylight penetration is governed by room depth relative to window head height.

Catch it: look for rooms much deeper than they are wide with windows on one short end.

Fix it: raise the head height, add a second aspect, add a rooflight, or reduce the depth. Which of those is available usually depends on which way the room faces.

One assumed plan, before and after

The three checks that catch most of it

If you do nothing else with a plan before approving it:

• ☐ Routes: five daily journeys checked; occupied areas crossed ______; proposed change ______.
• ☐ Furniture: real dimensions, door swings and use clearances drawn; conflicts ______.
• ☐ Adjacency: quiet-room neighbours above, below and beside checked; noise-control action ______.

For how to read the drawing well enough to run these, see how to read a house floor plan, and the floor plans and space planning guide for the reasoning underneath them.
